Portable Digital Phased Array Monitoring Radar with 120° Wide Monitoring Angle and Sub-millimeter-level High-Precision Deformation Monitoring for Slope Safety

Şimdi başvurun

Portable Digital Phased Array Monitoring Radar with 120° Wide Monitoring Angle and Sub-millimeter-level High-Precision Deformation Monitoring for Slope Safety

Menşe yeri:	Çin	Marka adı:	topsky

Detay Bilgi
Lens açısı:	120°	Tartmak:	15.5kg
Yarıçap:	5-40m, alan yoğunluğu ise -75dBm	Takım elbise:	600 m/s (zırhlı patlama plakaları olmadan)
Tarama modu:	Faz Tarama	İletişim mesafesi:	3000m
Sıklık:	600-1800MHz	Hız:	2s
Güç kaynağı:	Daha uzun çalışma süresine sahip şarj edilebilir piller	Süspansiyon:	Dört Noktalı Tip
Kullanım:	Askeri, kolluk kuvvetleri, güvenlik	IP düzeyi:	IP67
Göğüs:	824.8m/s	seyir hızı:	20m/s
Düz Sapma:	≤%1,74
Vurgulamak:	Sub-millimeter-level high-precision deformation monitoring Slope Monitoring Radar , 120° wide monitoring angle Ground-Penetrating Radar System , All-solid-state design with MIMO technology Portable Digital Phased Array Monitoring Radar

Ürün Açıklaması

Integrated 3D Slope and Ground-Penetrating Radar System for Slope Safety Monitoring

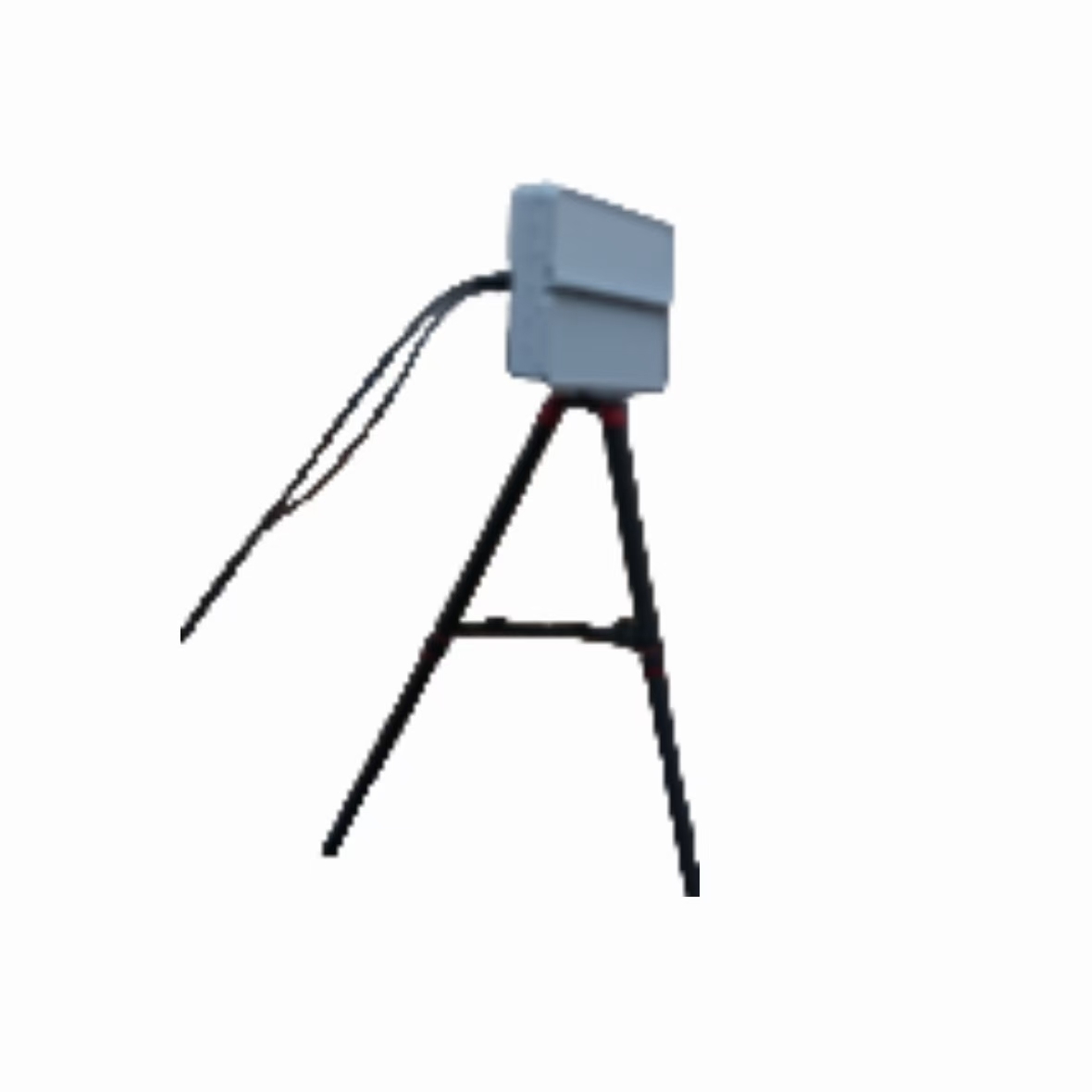

The PSR-5000T Portable Digital Phased Array Monitoring Radar is an advanced slope monitoring system independently developed and manufactured by Beijing Lintian Intelligent Equipment Group Co., Ltd. Featuring all-solid-state design and MIMO (Multiple-Input Multiple-Output) technology, this system offers significant advantages including compact size, lightweight construction, high precision and superior reliability.

Designed for single-person transport and rapid deployment, this radar system achieves sub-millimeter-level high-precision deformation monitoring when combined with proprietary safety monitoring and early warning software. The system performs large-scale, continuous, high-frequency real-time monitoring of glaciers, frozen ground, surface subsidence, open-pit mine slopes, hydropower reservoir banks, dam slopes, and large-scale structural deformations.

This technology provides early warning and prediction for various collapse disasters and is widely applied in safety assurance, health assessment, and emergency rescue operations for critical infrastructure projects, effectively protecting the lives of rescue personnel and construction workers.

Key Application Areas

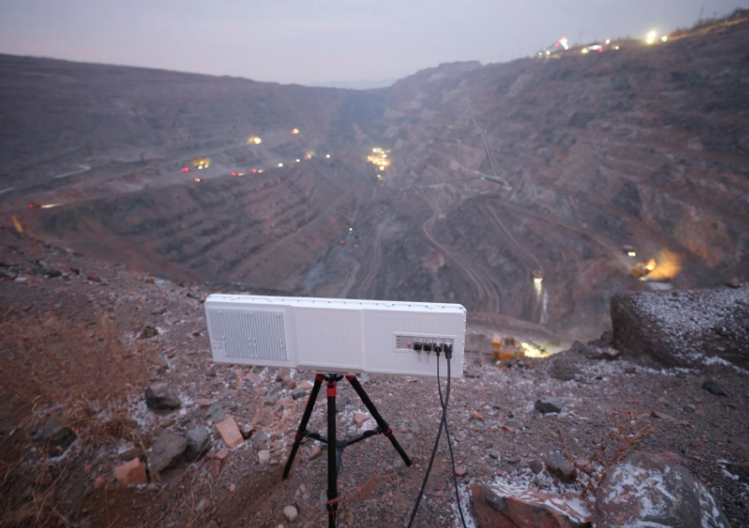

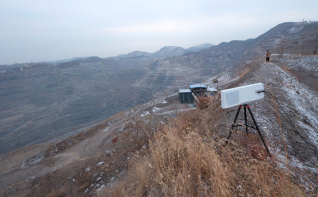

Open-pit Mines

Geological Landslides & Collapse

Emergency Rescue

Water Conservancy Dams

Urban Area Subsidence

System Functions & Capabilities

Ultra-Long-Distance & Large-Scale Detection

Detection range up to 5 km with monitoring accuracy unaffected by distance.
Ultra-High-Precision Monitoring

Maximum 0.1 mm sub-millimeter-level precision enables fine-grained monitoring of early-stage micro-deformations for faster and more accurate early warning.
Ultra-Light Weight Design

Complete system weighs less than 14 kg with maximum dimensions of 110 cm × 15 cm × 35 cm, making it portable by a single operator.
Ultra-Long Operating Time

Total power consumption less than 70 W with two power supply modes available.
High Spatial Resolution

Resolution of 0.46 m × 7.5 mrad delivers precise monitoring results and clearer, more accurate imaging.
Wide-Angle Monitoring

120° wide monitoring angle provides broader coverage for large-area monitoring of slope deformations.
